HüMo PLUS Kombi II

The Hühnermobil with the PLUS in possibilities

Like all our mobile hen houses, the HüMo PLUS Kombi II is equipped for self-sufficient operation and is ideal for keeping laying hens or for rearing/fattening broiler chicken – everyone feels at home here.

The key facts

Permissible number of hens according to the EU Organic Regulation
300
Permissible number of hens according to German animal welfare regulations
354
Basic functions (Standard equipment)
  • Modern coop control with touch panel
  • Powerful solar generator and batteries
  • Self-sufficient feed and water supply
  • Gear-supported manure belt
  • Chassis with hydraulic lifting device and individually retractable, ground-protecting wide tyres
  • Ventilation door, wide window strip, 2 axial fans
  • Temperature-controlled window opening
  • Height-adjustable drinking and feeding line
  • Chain feeding, individually programmable feeding times
  • Internal feed silo, can be filled from the outside
  • Water and feed level indicator
  • Vaccine container
  • LED light strips with infinitely variable dimming
  • Service/wind protection plates in the scratch area
  • Chicken return flaps
  • Additional wall feed trough for shell limestone and grit
  • Group bedding nests, electrically triggered nest lock, with storage space above the nests
  • Animal-friendly wooden perches
Optional functions
  • Camera system and noise monitoring (Animal Watch-App)
  • Hühnermobil-Cloud
  • Feed moistening
  • Feed & water consumption monitoring
  • Water desinfection system
  • Exterior water connection
  • Outdoor weather area
  • Grid ramps in front of the outlet flaps
  • Nest lighting
  • and much more.
Dimensions:
Length 12,90 m
Width 4,20 m *
Height (raised, without solar panels) 4,00 m
Feed tank 930 litres
Water tank 1.000 litres
*with wide wheels

Request free of charge documents now

Request documents now

What you will receive from us

  • A price list of all models
  • A spreadsheet for calculating profitability
  • Further information on the henhouses
  • Functions in detail

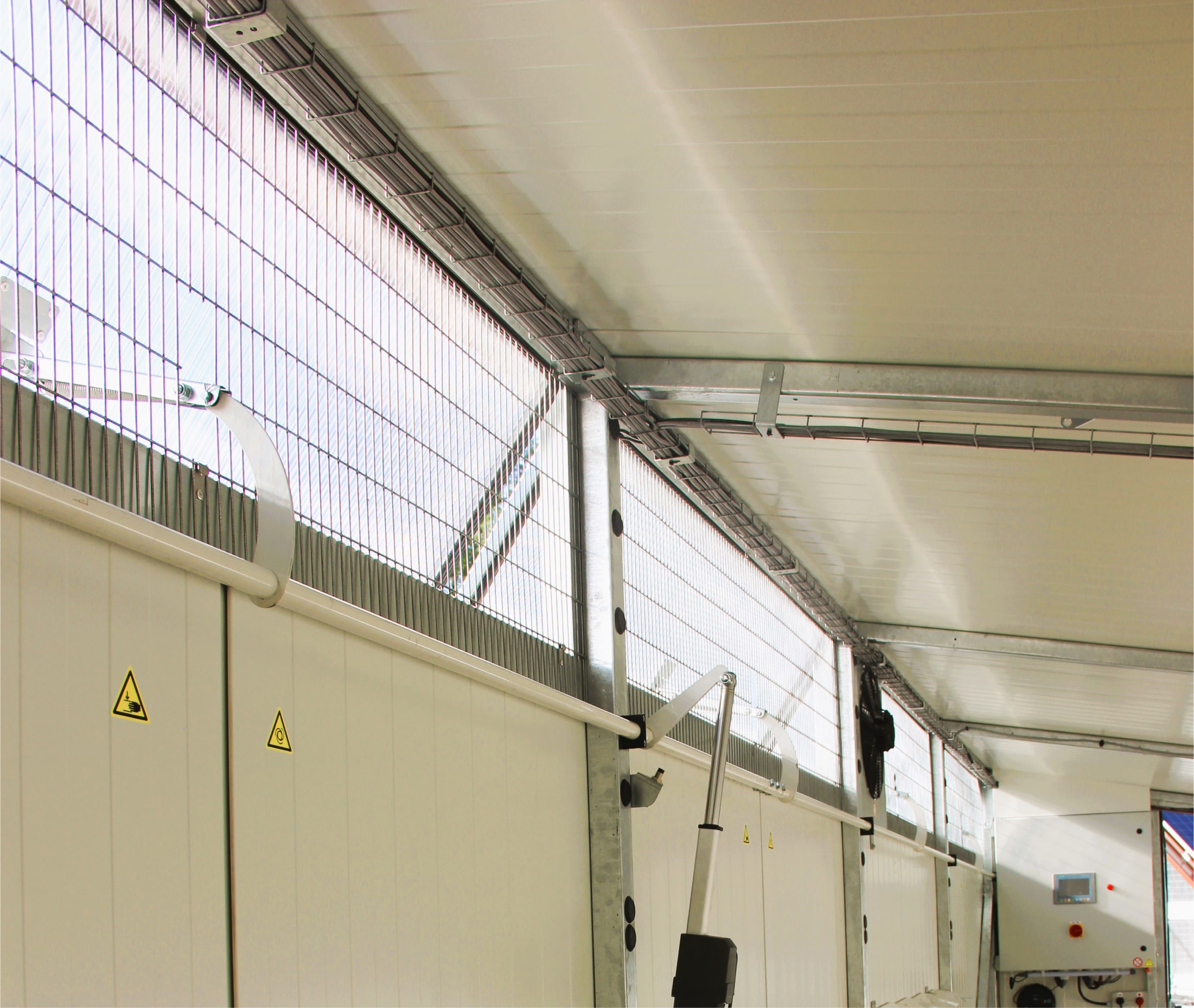

    Fresh air

    A double ventilation door, combined with five insulated, motorised opening and closing windows with game bird-proof grating, service doors with ventilation function in the scratch room and two fans integrated into the window strip ensure excellent air quality in the coop.

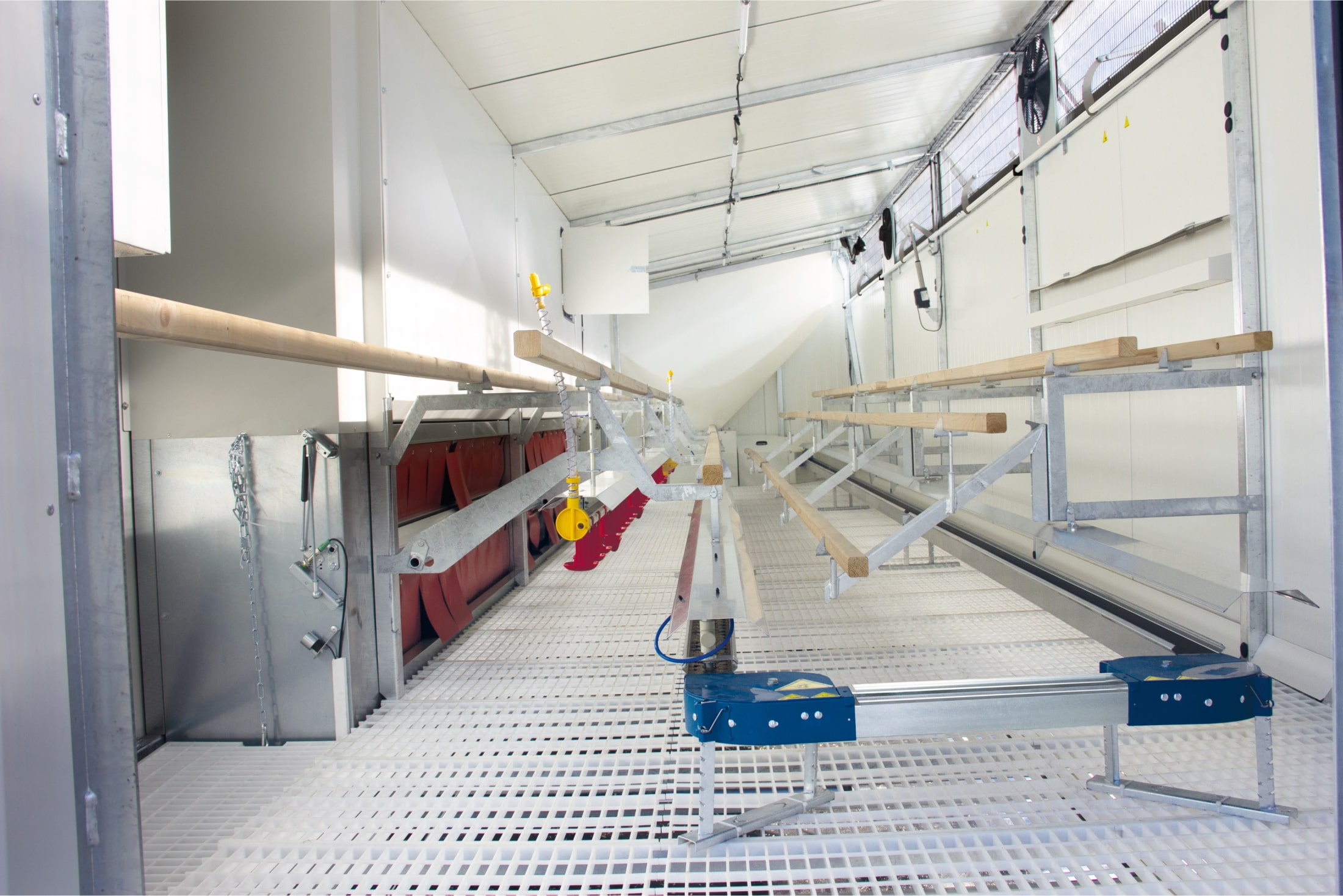

    Lots of light

    A translucent door, a wide window strip and LED light strips with infinitely variable dimming make for a light-flooded coop.

    Gear-supported manure belt

    For smooth, manual operation or optionally with adapter for cordless screwdriver for automated drive of the manure belt.

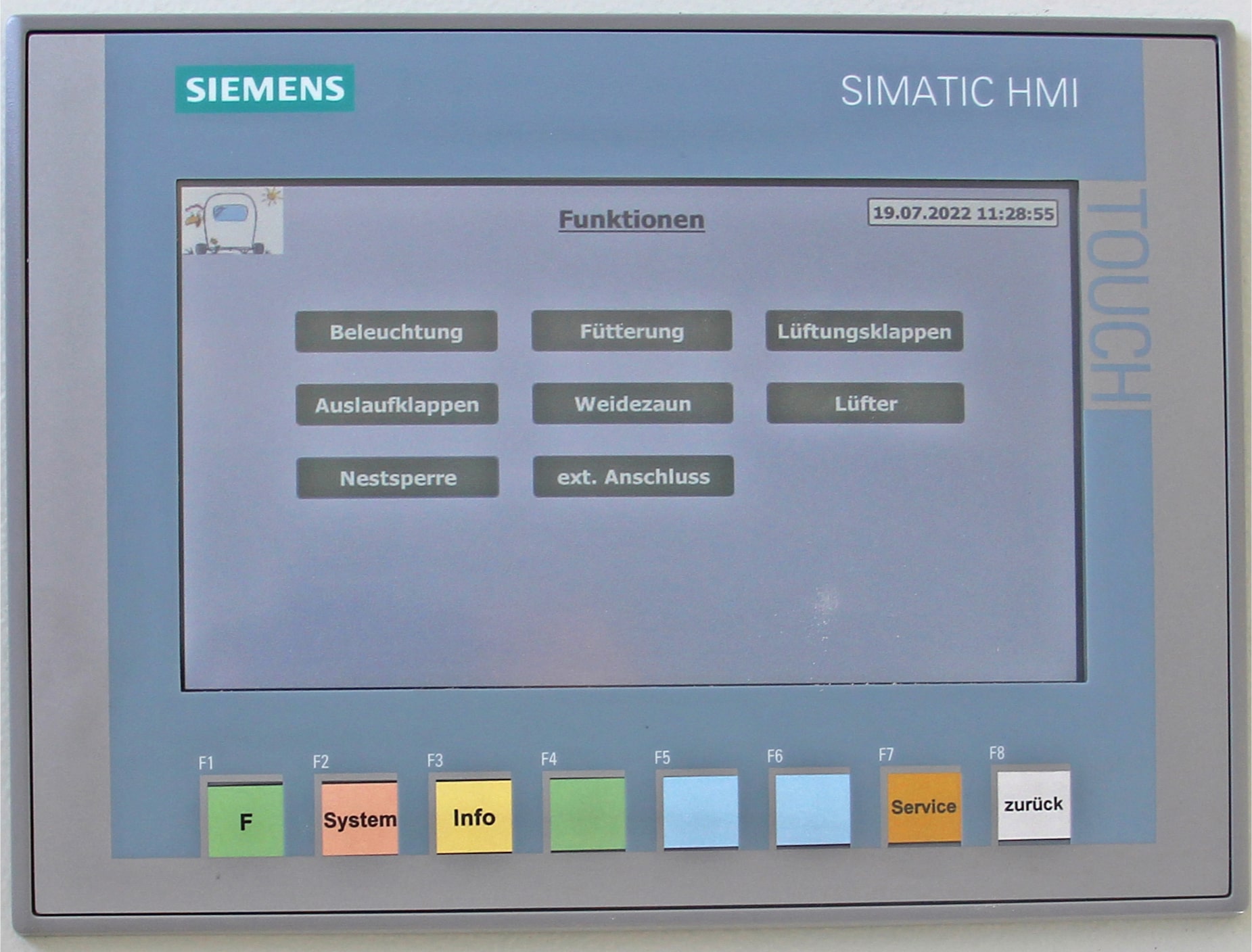

    Coop control via touch panel

    For controlling the coop functions via Siemens PLC S 7 with astro clock and timer. Light, outlet flaps, feeding and feed humidification, window ventilation and the triggering of the nest locks can be customised according to your requirements. You can read the water and feed levels on the display and optionally also the daily water and feed consumption of your chickens.

    Hühnermobil-Cloud

    For function monitoring, data input and evaluation as well as coop control, including reporting system with access via all common end devices with internet access. Stay informed about the data of your laying hens and your ccop (feed and water consumption, laying performance, coop climate, feed and water levels, etc.) at any time and any place.

    Height-adjustable chain feeding

    Chain feeding with up to 15 freely programmable feeding times, the feed control is orientated to the start of light; optionally available: feed moistening with adjustable water quantity.
    The automatic feeding system is fed from a feed silo that can be filled from the outside; the tank cover is opened and closed by use of an electric motor.

    Sophisticated water supply

    Water tank installed inside the coop, to be filled from outside; equipped with water level indicator and convenient opening for easy cleaning, it feeds a height-adjustable drinking line located directly in front of the nests. A UV lamp in the water tank (optional) can be used to sterilise the drinking water. Additives can be easily added to the drinking water via a liquid inoculation container. A lockable extermal water connection (optional) can be fitted for practical water extraction on the outside.

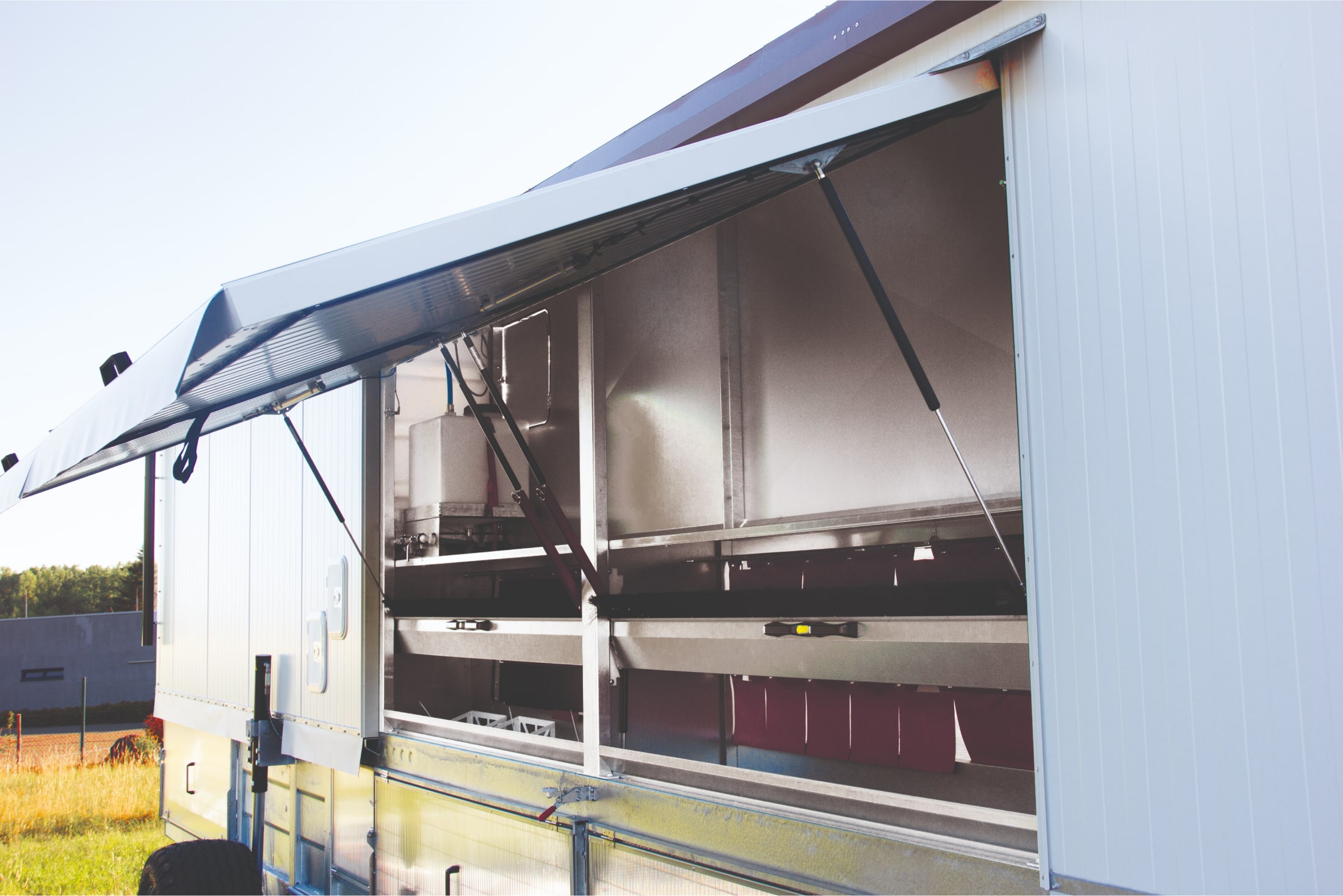

    Animal-friendly bedded group nests

    Two attractive bedded nests on two levels provide your hens with animal-friendly places to lay their eggs. The upper nest-level can be lowered for easier egg removal, the opening flaps also serve as rain protection. Bedded nests with spelt husk litter are ideal for hillside locations and provide optimum protection against breakage and cold.

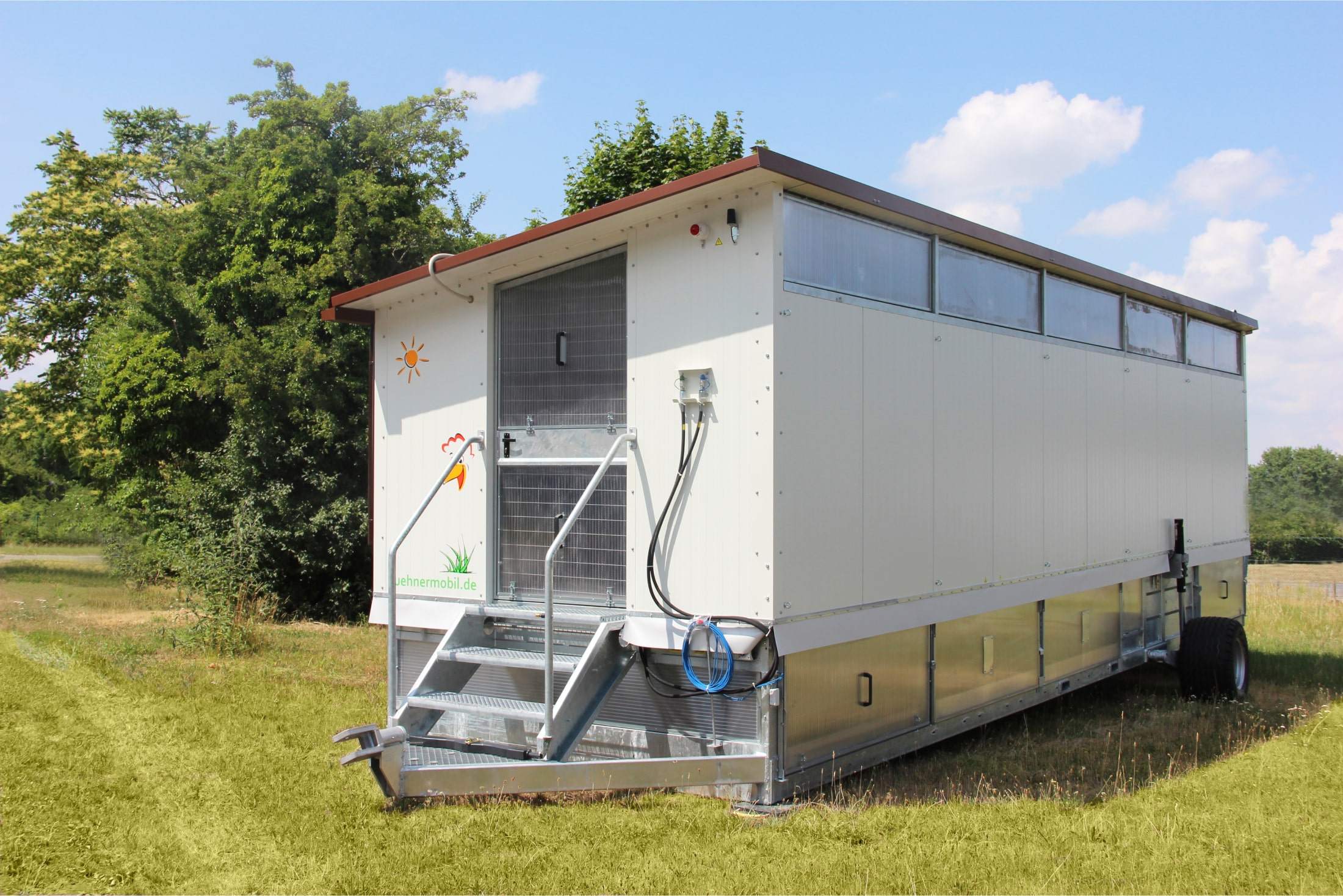

    More pictures of the HüMo PLUS Kombi II
